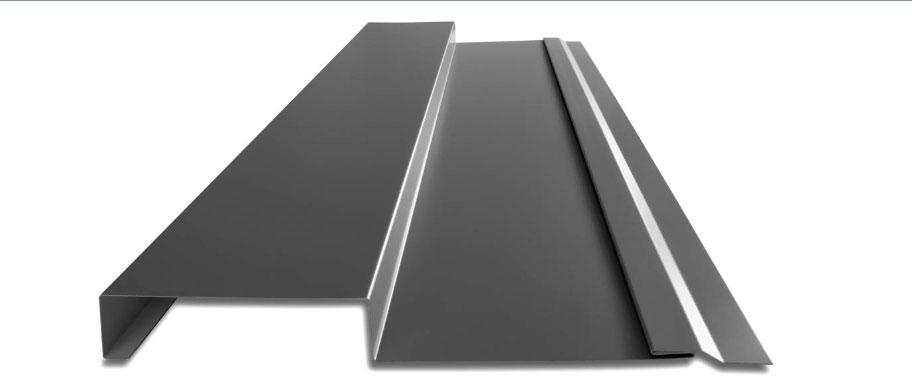

Reveal Series Panels are designed for wall, fascia and soffit applications where a flush or flat appearance is desired. A rounded interlock leg and concealed fastening system improves the flush appearance while providing additional strength. Panels are factory-formed to length to minimize field cutting. Maximum panel length is 21 feet and minimum panel length is 5 feet.
Features & Benefits
- 12?Coverage Panel
- Concealed fastener
- Reveal of panel can range from 1? to 6?
- Short-cut capability down to 3'
- Maximum panel length 21'
- Long length flashing available up to 21'
- 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanizing or AZ-50
- 22 & 24 gauge bare Zincalume Plus with Clear Acrylic Coating-AZ-55
- 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanized or AZ-50: Select colors, see data sheet for details
- 22gaugeRusteel (Cold Rolled) and 22 gauge Rusteel Plus (A606)
- .032 Kynar 500 Painted Aluminum: Select colors, see data sheet for details
- 16 and 20 ounce Copper
- 19Standard Colors, 5 Metallic Colors and 5 Specialized Colors
- Kynar 500 Paint System-the ultimate in exterior durabiity and color retention
- Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)
Standard 24g Cool Kynar 500 Colors
Metallic Cool Kynar 500 & Specialized Materials
