STRUCTURAL SNAP-LOCK PANEL

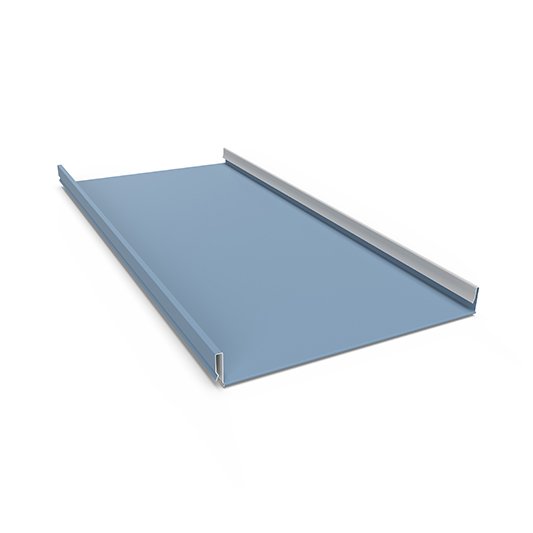

The System 2000 metal roof panel is a structural 1-3/4" integral snap-lock metal roof system, providing a weathertight joint without the use of a mechanical seamer. This metal roof panel has excellent structural spanning capabilities. The snap-lock design allows for installation efficiency and weathertight protection.
Available Materials: Galvalume (22, 24 gauge) / Aluminum (.032, .040) / Copper (16 oz)
Available Widths: 12" - 18"
Panel Options: Striations (Recommended) / Flat / Stress Ribs / * Factory applied Seam Sealant
Substrate Requirements: Can be installed over Solid Substrate.
Minimum Roof Pitch: 3:12
Underlayment: Ice & Water Shield (recommended) or Synthetic Underlayment.
Finish: Kynar 500 (Fluoropolymer PVDF Coating)
