STRUCTURAL MECHANICALLY SEAMED

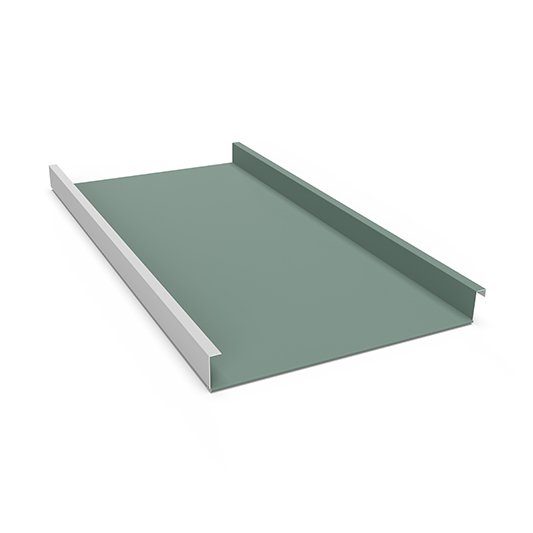

The System 2500 metal roof panel is a 2" mechanically seamed structural metal roof system. This metal roof panel has excellent structural spanning capabilities that can meet high wind loads and will perform well in low slope roof conditions. This panel can be installed using different seam styles: 90 (Single Lock) and 180 (Double Lock) with the use of a mechanical field seamer. The panel design is excellent for radius roof conditions.
Available Materials: Galvalume (22, 24 gauge) / Aluminum (.032, .040, .050) / Copper (16 & 20 oz)
Available Widths: 12" - 20"
Panel Options: Striations (Recommended) / Flat (Not Recommended) / Curved/Radius / Stress Ribs / * Factory applied Seam Sealant
Substrate Requirements: Can be installed over Solid Substrate or on Open Framing.
Minimum Roof Pitch: 1/2:12
Underlayment: Ice & Water Shield (recommended) or Synthetic Underlayment.
Finish: Kynar 500 (Fluoropolymer PVDF Coating)
