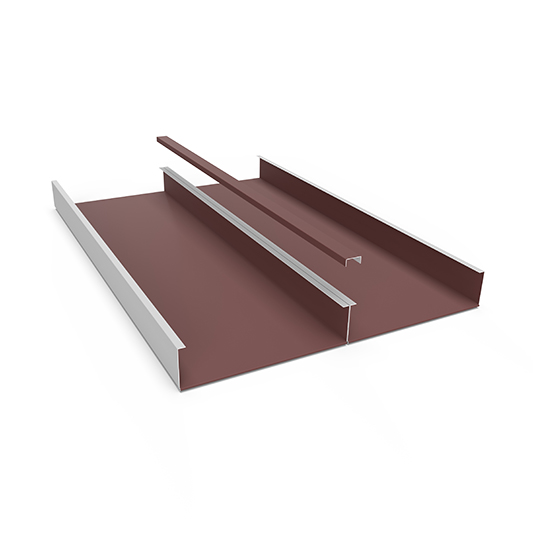

STRUCTURAL STANDING SEAM W/ BATTEN
The System 3000 is a structural metal roof panel with a 3 mechanical seam. This metal roof panel has excellent structural spanning capabilities and can meet high wind loads. Designed with a 3 tall seam having a batten cap, the panel will perform well in low slope roof conditions and is removable.
Available Materials: Galvalume (22, 24 gauge) / Aluminum (.032, .040, .050) / Copper (16 & 20 oz)
Available Widths: 12" - 18"
Panel Options: Striations (Recommended) / Flat / * Factory applied Seam Sealant
Substrate Requirements: Can be installed over Solid Substrate or on Open Framing.
Minimum Roof Pitch: 1/2:12
Underlayment: Ice & Water Shield (recommended) or Synthetic Underlayment.
Finish: Kynar 500 (Fluoropolymer PVDF Coating)
